110cc 125cc gas atv for teenager 110cc 125cc atv
VAT1103
Gas ATV optional parts
Cam color
4LED light
8inch steel wheel
7inch steel wheel
125cc,3+1
125cc, automatic
110cc, 3+1
110cc, 1+1
Mirror
Quantity
Model No: VAT1103 |  |
110cc 4 wheeler quad with automtic cluth, easy to drive. | |
SPECICIATIONS: | |
110cc quad Wheel number: 4 110cc quad Piston displacement: 50cc/110cc/125cc 110cc quad Starting system: CDI electric start 110cc quad Engine: single-cylinder, 4-stroke, air-cooling 110cc quad Battery:12V 4AH 110cc quad Brake:Rear: disc brake 110cc atv Drive system: chain dive 110cc atv Clutch method: automatic clutch Max torque: 4.2Nm/5000rpm,4.2Nm/5000rpm,5.2Nm/5000rpm,5.5Nm/5000rpm Max power: 3.0Kw/8500rpm,3.0kw/7500rpm,3.3kw/7500rpm,3.6kw/7500rpm 110cc atv Wheel: front and rear 7inch steel 110cc atv Front suspension details: double A x swing arm 110cc atv Rear suspension details: mono shock swing arm 110cc atv Vehicle size:152x86x91cm 110cc 4 wheeler Wheel base: 880mm Seat height from ground: 60cm 110cc 4 wheeler Ground clearance: 100mm Load capacity: 75kg 110cc 4 wheeler Fuel tank capacity: 3.2L Package: Iron cage with carton outside Net weight: 84kgs/184.8lbs Gross weight: 99kgs/217.8lbs Carton size: 126x76x61cm/1PC Container: 39pcs/20’,108pcs/40’HQPiston displacement: 50cc/110cc/125cc | |

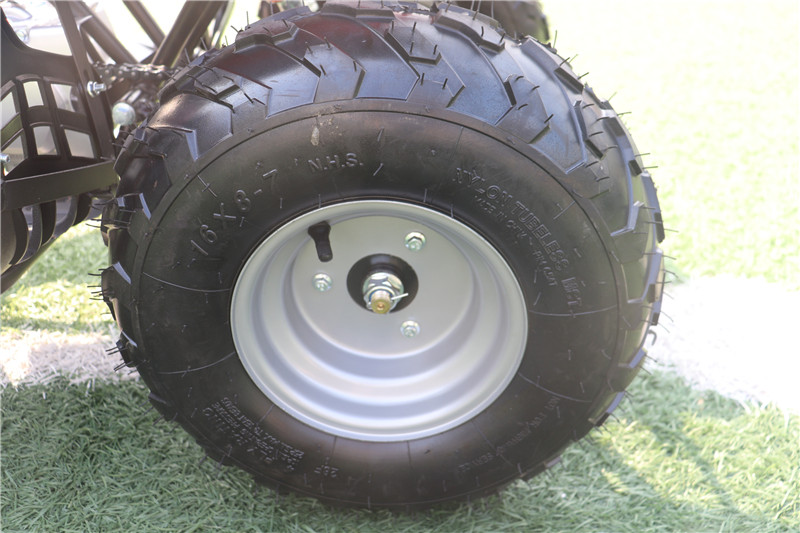

 | 7inch steel wheel: |
| 110cc 4 wheeler with off road tire, can drive on sand and tough road . | |

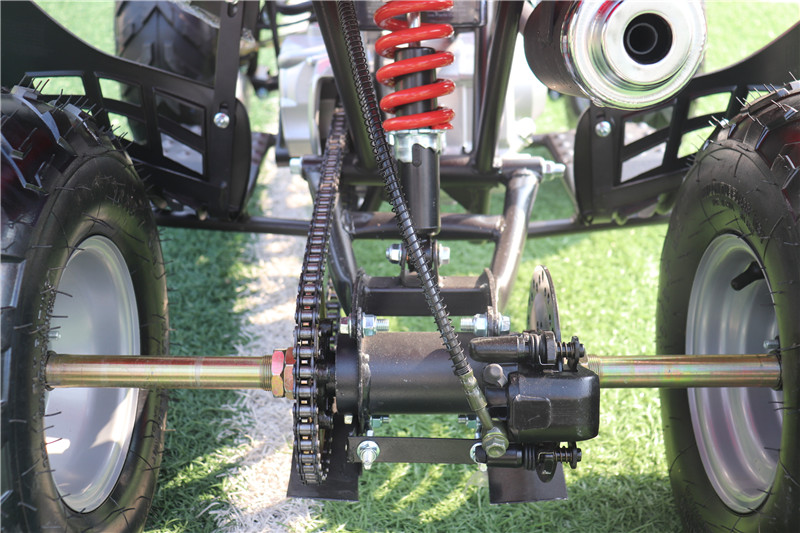

| Chain drive: |  |
No elastic sliding and slipping, accurate average transmission ratio, reliable operation and high efficiency; Large transmission power, strong overload capacity, and small transmission size under the same working condition; The required tension is small, and the pressure acting on the shaft is small; Able to work in harsh environments such as high temperature, humidity, dust and pollution | |

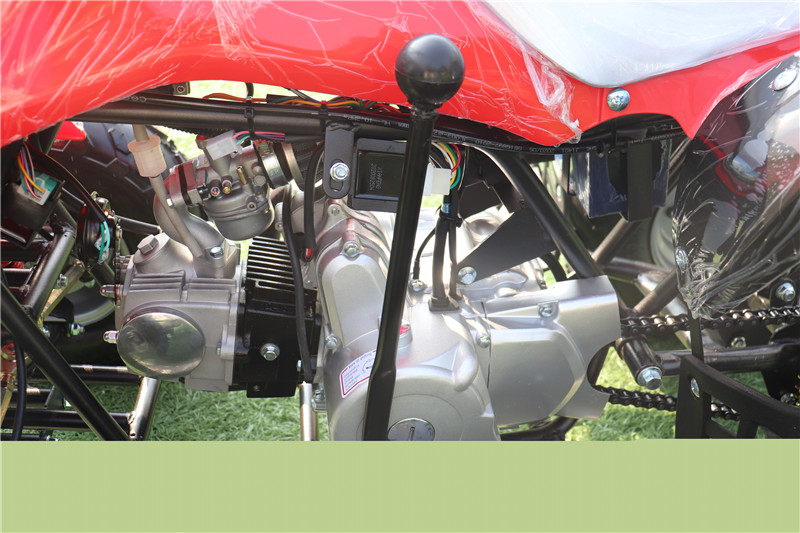

 | EASY TO RIDE: |
125cc CVT engine, F/N/R When you drive 110cc 4 wheeler, just put the gear, atv can go,ready-to-ride acceleration, kids also can drive easily |
